Multiple Panels
The Multipanel feature allows you to split the Picker into multiple viewports. However, this change is only visible in the Picker View—the Canvas will still display all shapes as part of the same document.
Once the multipanel picker is set up, you can toggle between a split viewport and sub-tabs for display. The configuration lets you set a default view, but users can still switch between the two modes interactively.

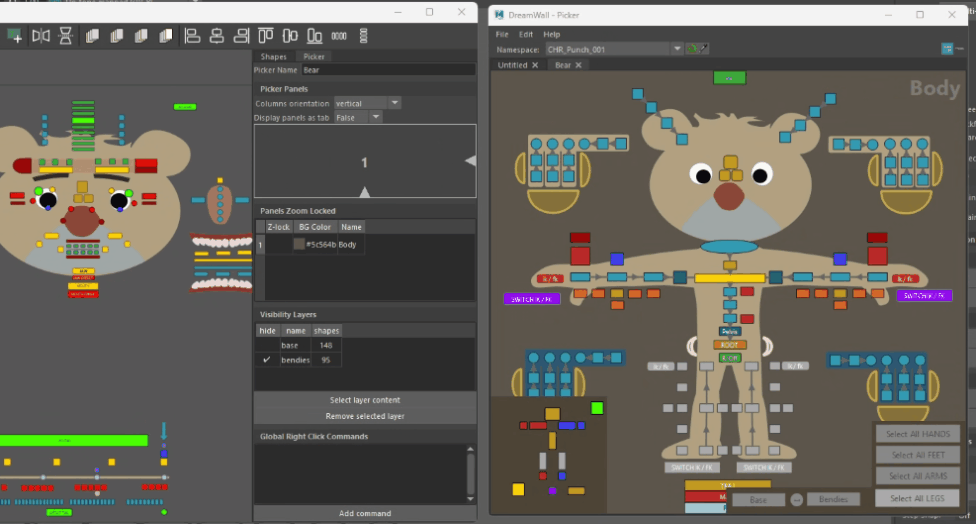

Setup

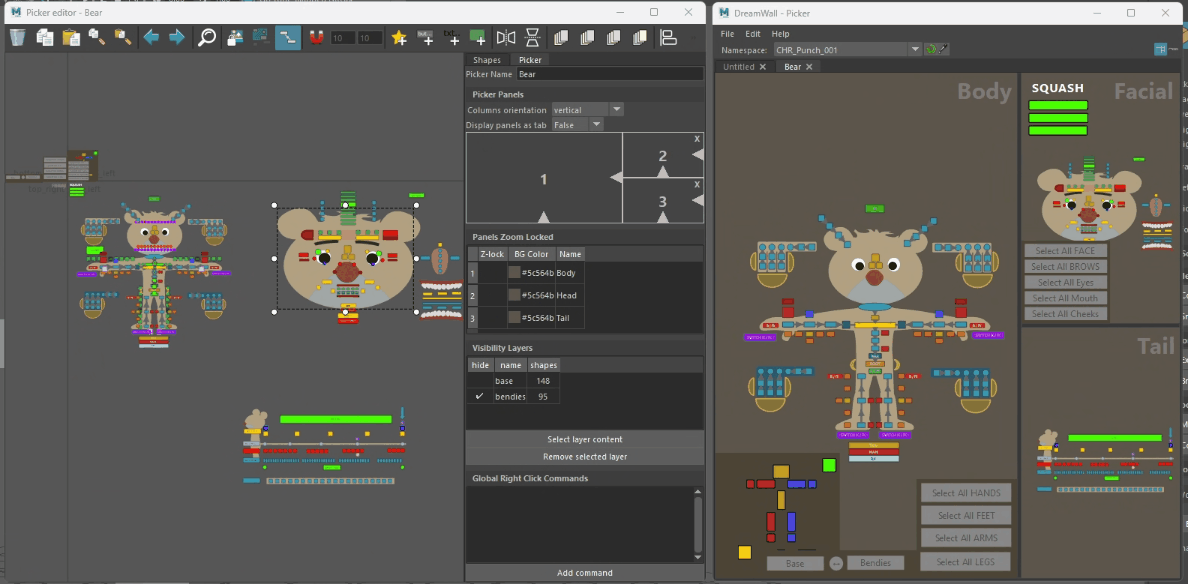

Setting up the panels must be done in the Picker tab within the Advanced Editor, under the Picker Panels section.

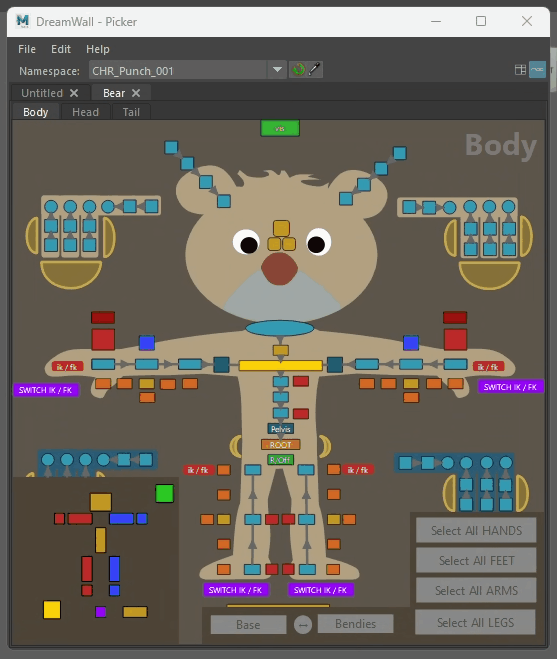

Switch Display
To dynamically switch between split viewports and sub-tabs, go to Edit > Toggle Panel Display Mode or press T.
If the Namespace Toolbar is visible, you can also use the toggle buttons to switch modes.

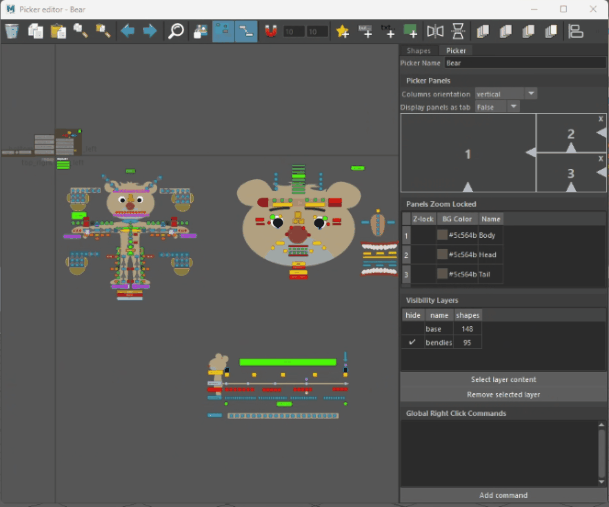

Isolate Shapes
In the Advanced Editor, you can isolate a panel to keep the canvas clean.
